QIDO Automatic Stacked PCB Loader | SMT Board Feeder for Solder Paste Printing Machine

Brand：QIDO

$819.00 USD
$819.00 USD

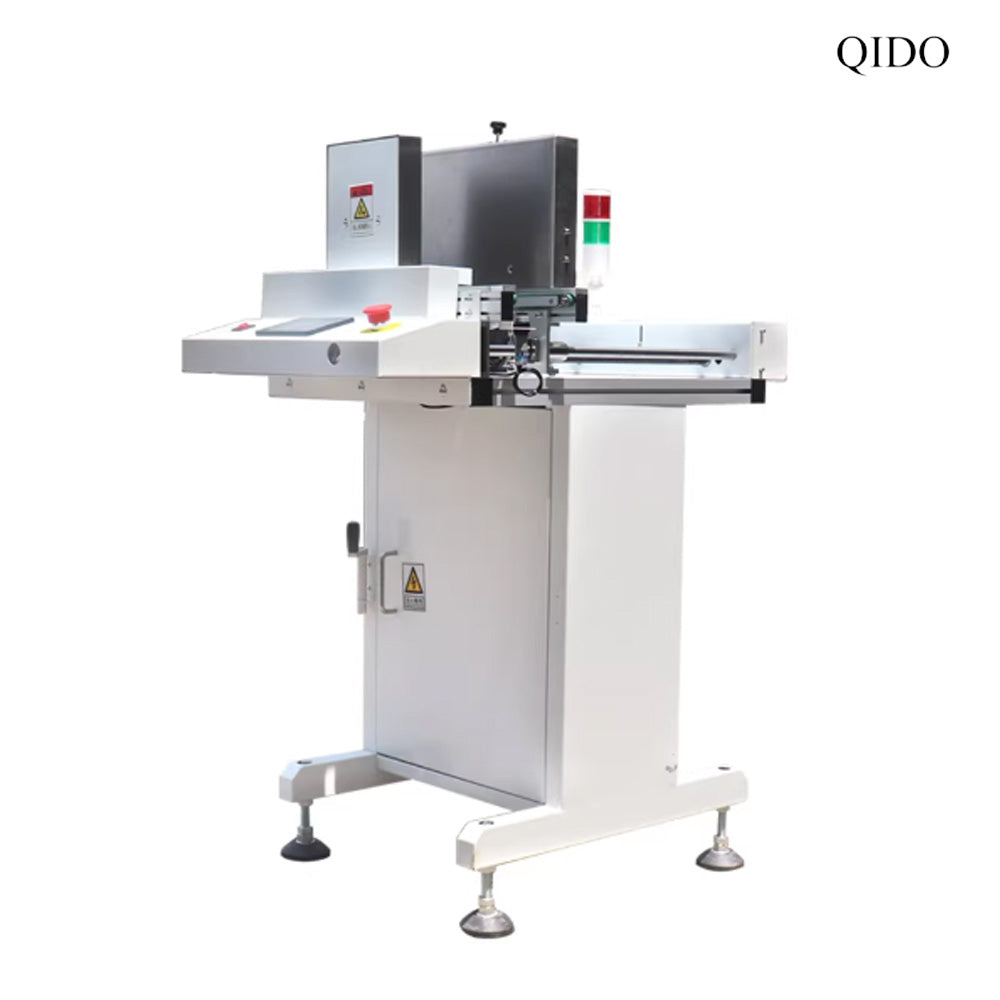

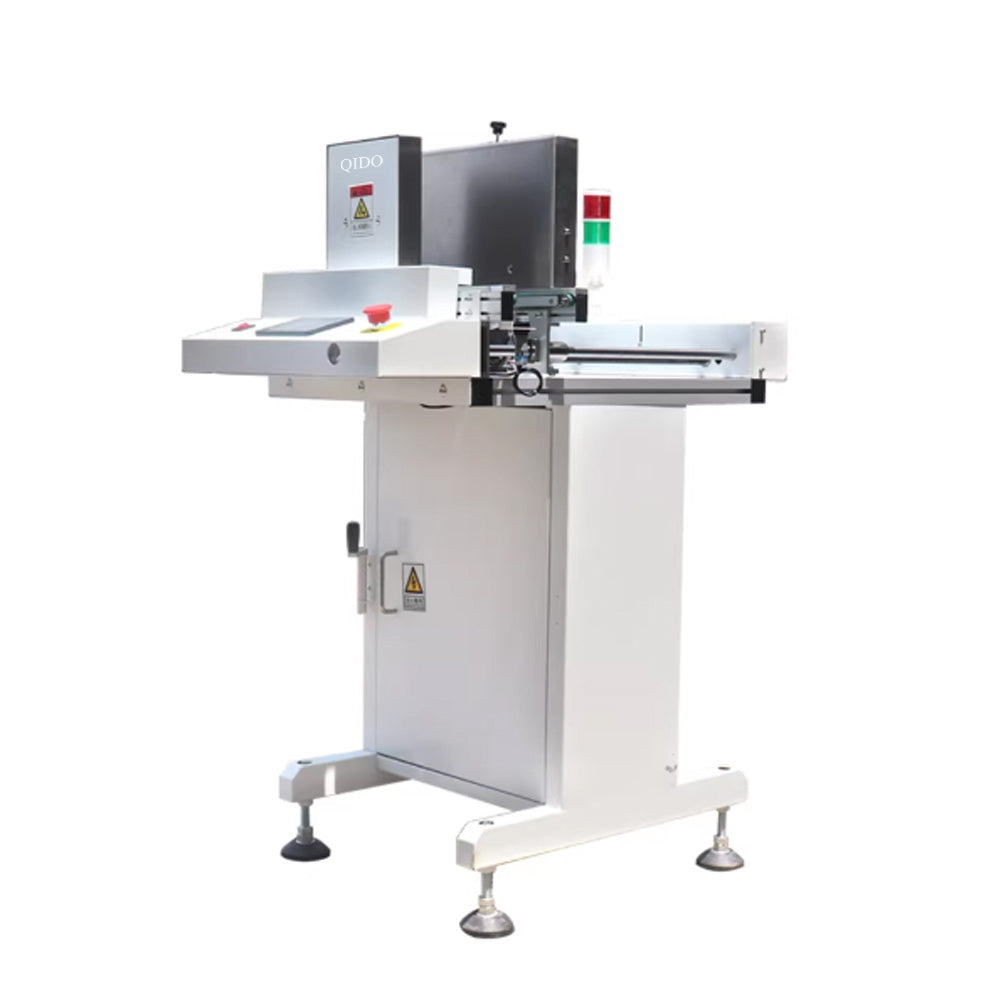

This automatic stacked PCB loader is a vital front-end equipment matched with SMT solder paste printing machines. It automatically separates stacked bare PCBs and feeds single boards to the printing machine track, replacing manual board loading. Realize unmanned automation of the PCB printing process, widely applied in SMT production lines for consumer electronics, industrial control boards, new energy circuit boards and other mass production workshops.

Stable Automatic Board Feeding, Anti-jam Design
Precise separation mechanism ensures single-board output, preventing multiple PCBs adhesion and track jamming to maintain continuous operation of printing equipment.
Intuitive Touchscreen Control System
Equipped with color touch panel for visualized parameter adjustment, including feeding speed, board dimension and standby delay. Emergency stop button for immediate shutdown under abnormal conditions.
3-Color Status Indicator Light
Green for normal running, yellow for standby reminder, red for fault alarm. Operators can check equipment status from a long distance for convenient production line management.
Integrated PLC Electrical Control
Built-in PLC control system with automatic I/O signal detection. Supports signal interconnection with solder paste printers, conveyors and other SMT equipment for full-line linked start & stop.
Height Adjustable Support Feet
Leveling foot cups at the bottom allow quick body leveling and flexible height matching to fit different production line layouts.
Robust Industrial Cabinet Structure
Sturdy sheet metal enclosure protects internal electrical and drive components, with safety lock door for easy maintenance, durable and low energy consumption for harsh industrial environments.

Main Functions

  1. Automatically separate stacked PCBs and convey single boards;
  2. Docking transmission track synchronized with solder paste printers;
  3. Audible & visual automatic alarms for out-of-board, board jamming and motor failures;
  4. Customizable and storable parameters for feeding speed and board specifications;
  5. Compatible with PCB magazine frames to hold a large batch of substrates and reduce frequent manual refilling.

This SMT stacked PCB loader serves as an automatic board feeder in front of solder paste printers. It accurately separates stacked circuit boards and feeds single PCBs automatically without manual operation. Featured with touchscreen operation, PLC linkage control and 3-color fault warning light, it effectively boosts production efficiency and reduces labor cost for PCB printing manufacturing.
